Building the Marimba - page 1a

Jeffrey La Favre - jlafavre@gmail.com

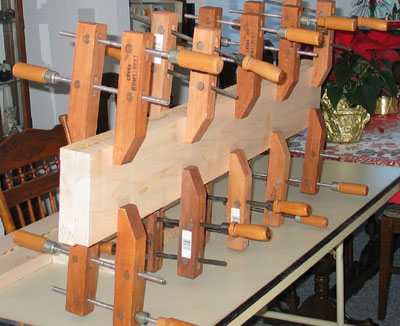

Gluing up maple for end members of frame

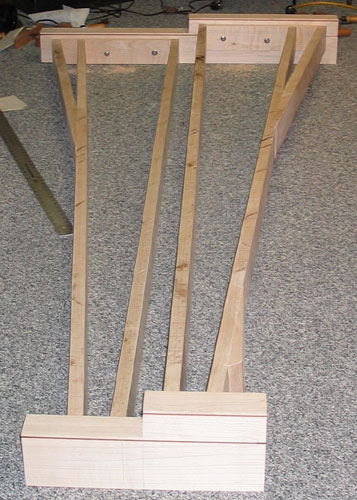

Rails assembled to top pieces of end members of frame.

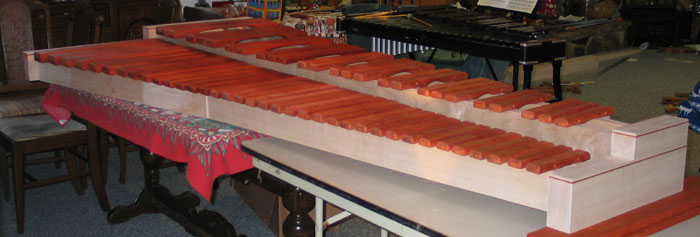

Checking alignment of bars with frame. Frame dimensions: 8' 6 1/4" long, 46" wide at bass end, 18" wide at treble end.

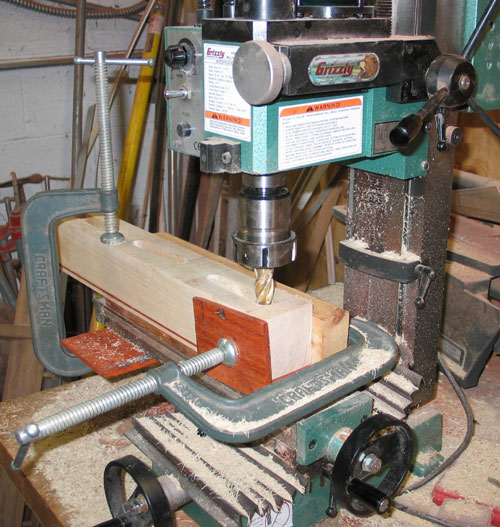

Mortising end member of frame

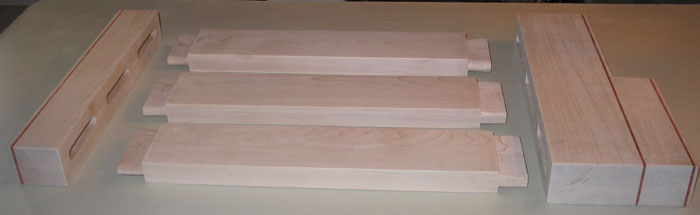

Mortise and tenon assembly of frame end member (treble end)

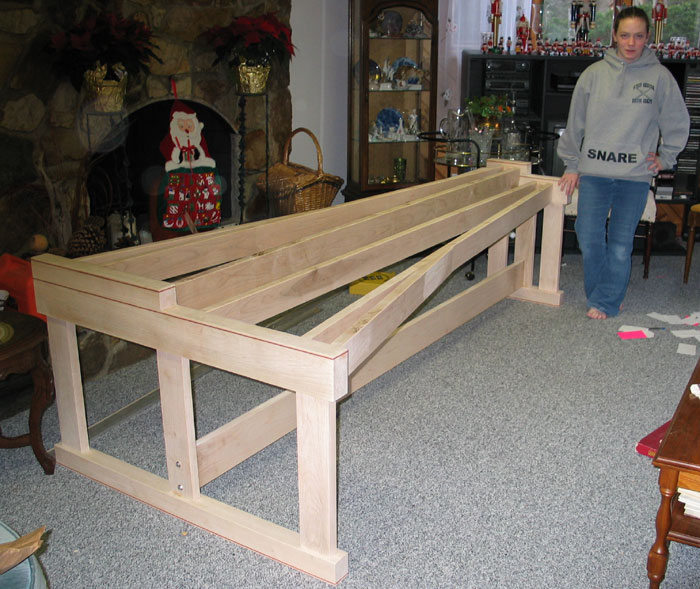

Assembled frame (without casters, which are 5 1/8" high)
